Wednesday, October 06, 2010

using "plshprof"

Hierarchical Profiling Concepts - start in Oracle Database 11g, the hierarchical profiler help to identify the hotspots and performance tuning opportunities in your PL/SQL applications.

plshprof is a command-line utility to generate HTML reports from raw profiler data generated by the data collection component after running the DBMS_HPROF.ANALYZE (we can generate directly from the raw profiler data).

PL/SQL procedure successfully completed.
-- TEMP_DIR is directory, this sample = /tmp
-- prf_test.txt is file name.

SQL> exec my_procedure01;

PL/SQL procedure successfully completed.
-- my_procedure0e is procedure, that we need to collect data


PL/SQL procedure successfully completed.

SQL> !less /tmp/prf_test.txt
P#V PLSHPROF Internal Version 1.0
P#! PL/SQL Timer Started
P#C PLSQL."".""."__plsql_vm"
P#X 11
P#C PLSQL."".""."__anonymous_block"
P#X 107
P#C PLSQL."SYS"."DBMS_OUTPUT"::11."GET_LINES"#660bd56a1b1640db #180
P#X 29
P#C PLSQL."SYS"."DBMS_OUTPUT"::11."GET_LINE"#8440831613f0f5d3 #129
P#X 6
then use "plshprof" command-line.
PLSHPROF: Oracle Database 11g Enterprise Edition Release - Production
Usage: plshprof [<option>...] <tracefile1> [<tracefile2>]
-trace <symbol> (no default) specify function name of tree root
-skip <count> (default=0) skip first <count> invokations
-collect <count> (default=1) collect info for <count> invokations
-output <filename> (default=<symbol>.html or <tracefile1>.html)
-summary print time only
go to TEMP_DIR path and...:
$ cd /tmp
$ plshprof -output prf_test prf_test.txt
PLSHPROF: Oracle Database 11g Enterprise Edition Release - Production
[9 symbols processed]
[Report written to 'prf_test.html']

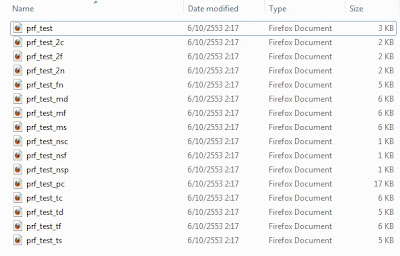

then we will see files (*.html).
and then open file (prf_test.html)

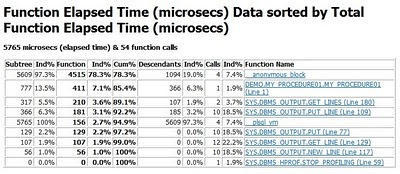

we will see summary report.
read more
other else using plshprof :
$ plshprof -summary prf_test.txt
PLSHPROF: Oracle Database 11g Enterprise Edition Release - Production
Total subtree time: 5765 microsecs (elapsed time)
However, we use DBMS_HPROF to collect data, so we have to grant EXECUTE privilege on the DBMS_HPROF package to user.
